com.sfm.ap210.jsdai
Interface MIMpackageQueries

All Known Subinterfaces:

MIMpackageQueriesWithGDT

All Known Implementing Classes:

MIMpackageQueriesImpl, MIMpackageQueriesWithGDTImpl

public interface MIMpackageQueries

An interface for the MIMpackageQueries methods defined in the reference document below.

See Also:

MIMqueries_1.3-Package

Method Summary

void	addPackageParam(java.lang.String name) Adds a named package parameter to the set returned by getParametricAttributesOfPackage(EPackage).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProperty_definition	addShapeAspectProperty(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect, java.lang.String property, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ERepresentation value) Add a named property value to a shape_aspect instance through a property_definition association
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect_relationship	addShapeAspectToComposite(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect member, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_shape_aspect composite) Add a shape_aspect as a member of a composite_shape_aspect through an associated shape_aspect_relationship
void	addTerminalParam(java.lang.String paramName) Adds a named terminal template parameter to the set returned by getParametricAttributesOfTerminalTemplate(EPackage_terminal_template_definition).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProduct_definition_relationship	assignThermalNetworkToPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_pkg, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EThermal_network e_net) Assign the given thermal_network instance to the provided package through an appropriate product_definition_relationship
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	get2dDesignShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns a 2D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_planar_shape_model with a shape purpose of ‘design.’
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	get3dDesignShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model with a shape purpose of ‘design.’
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	get3dShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	get3dThermalAnalysisInputRepresentation(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model with a shape purpose of ‘thermal_analysis_input’
java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProperty_definition>	getAllPropertyDefinitionsOf(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect) Returns all property_definition instances associated with the given shape_aspect either directly or through any composite_group_shape_aspect memberships
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.AAssembly_component_usage	getAllTTLISTforST(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EStructured_template e_st) Returns all template placements composing the given structured_template (Structured_template).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_body	getBodyOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns the package_body (Package_body) for the given package (Package).
java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_group_shape_aspect>	getCompositeGroupsOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa) Finds all composite_group_shape_aspect instances of which the given shape_aspect is a member through a shape_aspect_relationship
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.AFootprint_definition	getFootprintsOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns all footprint_definition (Footprint_definition) associated with the given package (Package).
java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect>	getMembersOfCompositeShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_shape_aspect composite) Returns all shape_aspect instances that are (direct) members of the given composite_shape_aspect instance through a shape_aspect_relationship
java.util.List<Param>	getParametersOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect) Extract all properties defined on the given shape_aspect (both directly and through any composite_group_shape_aspect associations) through property_definition relationships
java.util.List<Param>	getParametersOfShapeAspectInContext(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ERepresentation_context context) Extract all properties defined on the given shape_aspect (both directly and through any composite_group_shape_aspect associations) through property_definition relationships where the representation_context of the value representation of the property_definition is the provided context instance
java.util.Set<Param>	getParametricAttributesOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns a specific set of read-only parameters (Param) associated with the given package (Package).
java.util.Set<Param>	getParametricAttributesOfTerminalTemplate(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition e_pttd) Returns a specific set of read-only parameters (Param) associated with the given package_terminal_template_definition (Package_terminal_template_definition).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect	getPartFeatureForTLIST(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EAssembly_component_usage e_tlist) Returns a shape_aspect representing the Part_feature associated with the given assembly_component_usage corresponding to a Part_feature_based_template_location subtype of Template_location_in_structured_template.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPlacement	getPlacementOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_sa_sr, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_placed_sr) Returns the placement used to position the shape_representation (Geometric_model) of a shape_aspect (Shape_element) with respect to the shape_representation of its containing shape.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	getQualifiedShapeRepresentationOfPackageWithSpecifiedPurpose(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage p, java.lang.String qualifyingName, java.lang.String shapePurpose) Returns a qualified shape_representation (Geometric_model) with a particular purpose.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ESeating_plane	getSeatingPlaneOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns the seating_plane (Seating_plane) for the given package (Package).
java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect>	getShapeAspectsOfPhysicalShapeRepresentation(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPhysical_unit e_p, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_r) Returns a listing of all shape_aspect instances defined on the given physical_unit that are used by the given associated shape_representation of the physical_unit
java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect>	getShapeAspectsOfPhysicalUnit(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPhysical_unit e_p) Get all shape_aspect instances defined on the given physical_unit instance across all associated shape_representation instances
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	getShapeRepresentationOfPackageTerminal(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal e_pt) Returns the shape_representation (Part_feature_template_shape_model) for the given package_terminal (Package_terminal).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	getShapeRepresentationOfPackageTerminalTemplate(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition e_pttd) Returns the shape_representation (Part_feature_template_shape_model) of the given package_terminal_template_definition (Package_terminal_template_definition).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation	getShapeRepresentationOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa) Finds the shape_representation (Geometric_model) associated with a shape_aspect (Shape_element) such as the package_body (Package_body) or seating_plane (Seating_plane) of the package (Package) Assumes a single shape_representation of the shape_aspect.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition	getTemplateOfPackageTerminal(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal e_pt) Returns the package_terminal_template_definition (Package_terminal_template_definition) for the given package_terminal (Package_terminal) or null if no associated terminal template is found.
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal	getTerminalOfPackageWithSpecifiedName(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p, java.lang.String name)
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.APackage_terminal	getTerminalsOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Returns all package_terminal (Package_terminal) of the given package (Package).
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EThermal_network	getThermalNetworkOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p) Get a thermal_network defined for the given package instance through a qualifying product_definition_relationship instance
jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EUsage_concept_usage_relationship	getUCURofShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_sa_sr, jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_placed_sr) Returns the usage_concept_usage_relationship used to position the shape_representation (Geometric_model) of a shape_aspect (Shape_element) with respect to the shape_representation of its containing shape.

Method Detail

getTerminalsOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.APackage_terminal getTerminalsOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                  throws jsdai.lang.SdaiException

Returns all package_terminal (Package_terminal) of the given package (Package). Returns an empty aggregate if no terminals are found.

Parameters:

e_p - the given package

Returns:

an aggregate of package_terminal

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getTerminalsOfPackage

getTerminalOfPackageWithSpecifiedName

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal getTerminalOfPackageWithSpecifiedName(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p,
                                                                                                                                  java.lang.String name)
                                                                                                                                  throws jsdai.lang.SdaiException

Throws:

jsdai.lang.SdaiException

getFootprintsOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.AFootprint_definition getFootprintsOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                       throws jsdai.lang.SdaiException

Returns all footprint_definition (Footprint_definition) associated with the given package (Package). Returns an empty aggregate if no footprint definitions are found.

Parameters:

e_p - the given package

Returns:

an aggregate of footprint_definition associated with the given package

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getFootprintsOfPackage

getTemplateOfPackageTerminal

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition getTemplateOfPackageTerminal(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal e_pt)
                                                                                                                                             throws jsdai.lang.SdaiException

Returns the package_terminal_template_definition (Package_terminal_template_definition) for the given package_terminal (Package_terminal) or null if no associated terminal template is found.

Parameters:

e_pt - the given package_terminal

Returns:

the associated package_terminal_template_definition

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getTemplateOfPackageTerminal

getShapeRepresentationOfPackageTerminalTemplate

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation getShapeRepresentationOfPackageTerminalTemplate(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition e_pttd)
                                                                                                                                                throws jsdai.lang.SdaiException

Returns the shape_representation (Part_feature_template_shape_model) of the given package_terminal_template_definition (Package_terminal_template_definition). Implementation is based on the assumption that there is only one shape_representation associated with the template definition. Returns null if no associated shape_representation is found.

Parameters:

e_pttd - the given package_terminal_template_definition

Returns:

the associated shape_representation

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getShapeRepresentationOfPackageTerminalTemplate

getShapeRepresentationOfPackageTerminal

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation getShapeRepresentationOfPackageTerminal(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal e_pt)
                                                                                                                                        throws jsdai.lang.SdaiException

Returns the shape_representation (Part_feature_template_shape_model) for the given package_terminal (Package_terminal). Implementation is based on the assumption that there is only one shape_representation associated with the package_terminal_template_definition (Package_terminal_template_definition) of the terminal.

Parameters:

e_pt - the given package_terminal

Returns:

the associated shape_representation

Throws:

jsdai.lang.SdaiException

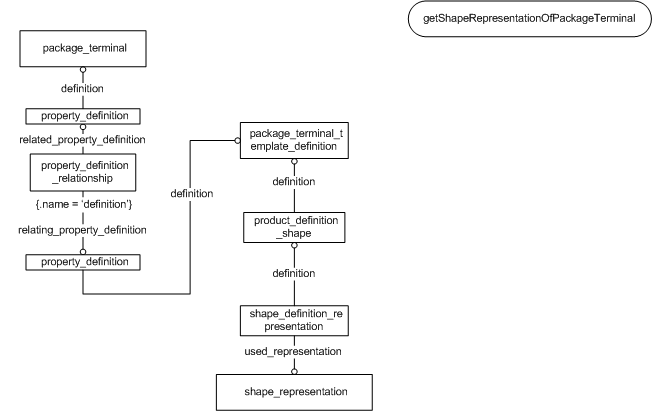

MIM Instance Diagram:

getShapeRepresentationOfPackageTerminal

getQualifiedShapeRepresentationOfPackageWithSpecifiedPurpose

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation getQualifiedShapeRepresentationOfPackageWithSpecifiedPurpose(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage p,
                                                                                                                                                             java.lang.String qualifyingName,
                                                                                                                                                             java.lang.String shapePurpose)
                                                                                                                                                             throws jsdai.lang.SdaiException

Returns a qualified shape_representation (Geometric_model) with a particular purpose. The qualification on the name of the shape_representation supports the mapping requirements of the subtypes of the ARM AO Geometric_model, including the commonly implemented subtypes for 2D and 3D shape models and keepouts:

Physical_unit_planar_shape_model
Physical_unit_planar_keepout_shape_model
Physical_unit_3d_shape_model
Physical_unit_3d_keepout_shape_model

The shapePurpose argument supports the mapping of the shape_purpose attribute of the ARM AOs Physical_unit_3d_shape_model, Physical_unit_keepout_shape_model, and Physical_unit_planar_shape_model. The method will return a shape_representation with name = qualifyingName and shape purpose equal to the given shapePurpose parameter.

Parameters:

p - the given package

qualifyingName - the qualifying value for the name attribute of shape_representation

shapePurpose - the qualifying value for the shape_purpose attribute

Returns:

the qualifying shape_representation

Throws:

jsdai.lang.SdaiException

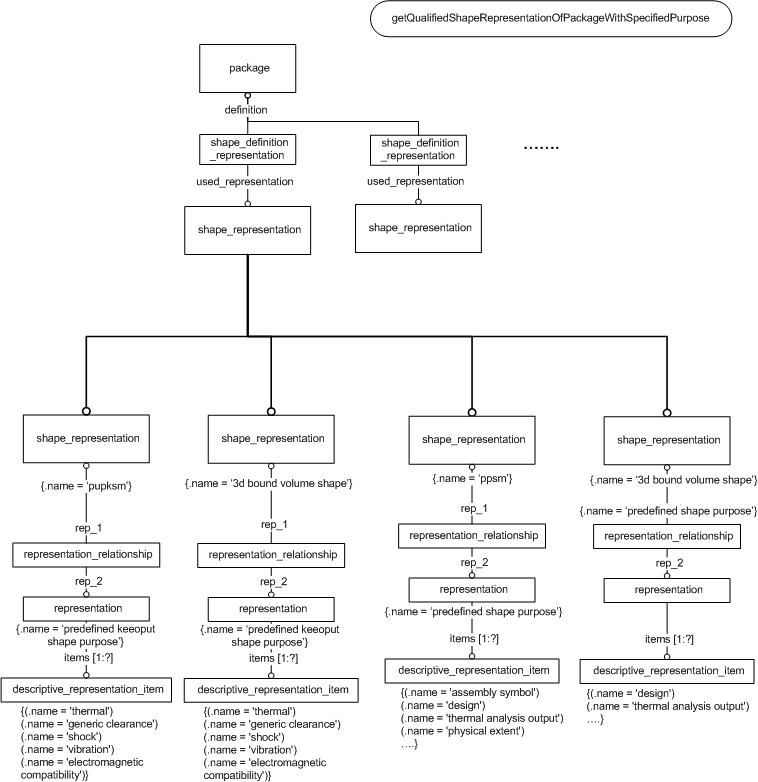

MIM Instance Diagram:

getQualifiedShapeRepresentationOfPackageWithSpecifiedPurpose

get2dDesignShapeRepresentationOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation get2dDesignShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                                        throws jsdai.lang.SdaiException

Returns a 2D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_planar_shape_model with a shape purpose of ‘design.’

Parameters:

e_p - the given package

Returns:

the qualifying shape_representation

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

get2dDesignShapeRepresentationOfPackage

get3dDesignShapeRepresentationOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation get3dDesignShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                                        throws jsdai.lang.SdaiException

Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model with a shape purpose of ‘design.’

Parameters:

e_p - the given package

Returns:

the qualifying shape_representation

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

get3dDesignShapeRepresentationOfPackage

get3dThermalAnalysisInputRepresentation

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation get3dThermalAnalysisInputRepresentation(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                                        throws jsdai.lang.SdaiException

Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model with a shape purpose of ‘thermal_analysis_input’

Parameters:

e_p - the given package

Returns:

the qualifying shape_representation

Throws:

jsdai.lang.SdaiException

get3dShapeRepresentationOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation get3dShapeRepresentationOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                                  throws jsdai.lang.SdaiException

Returns a 3D shape_representation associated with the given package (Package) that satisfies the mapping requirements for a Physical_unit_3d_shape_model.

Parameters:

e_p - the given package

Returns:

the qualifying shape_representation

Throws:

jsdai.lang.SdaiException

getShapeRepresentationOfShapeAspect

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation getShapeRepresentationOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa)
                                                                                                                                    throws jsdai.lang.SdaiException

Finds the shape_representation (Geometric_model) associated with a shape_aspect (Shape_element) such as the package_body (Package_body) or seating_plane (Seating_plane) of the package (Package) Assumes a single shape_representation of the shape_aspect. Returns null if no shape_representation is found.

Parameters:

e_sa - the given shape_aspect

Returns:

the associated shape_representation

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getShapeRepresentationOfShapeAspect

getPlacementOfShapeAspect

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPlacement getPlacementOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa,
                                                                                                               jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_sa_sr,
                                                                                                               jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_placed_sr)
                                                                                                               throws jsdai.lang.SdaiException

Returns the placement used to position the shape_representation (Geometric_model) of a shape_aspect (Shape_element) with respect to the shape_representation of its containing shape. In the context of a package model, the shape_aspect (e_sa_sr) may be a package_terminal (Package_terminal), package_body (Package_body), or seating_plane (Seating_plane). The containing shape (e_placed_sr) would typically be the design shape of the package. The method must be qualified by both the package shape representation and the shape representation of the shape_aspect. If the applicable shape_representations are 3d, the returned placement will be of type axis2_placement_3d (Axis_placement_3d). If the applicable shape_representations are planar shape models, the returned placement will be of type axis2_placement_2d (Axis_placement_2d).

Parameters:

e_sa - the given shape_aspect

e_sa_sr - the shape_representation of the given shape_aspect

e_placed_sr - the qualifying shape_representation of the containing shape (i.e. package)

Returns:

the placement that positions the shape_representation of the shape_aspect with respect to that of the containing shape.

Throws:

jsdai.lang.SdaiException

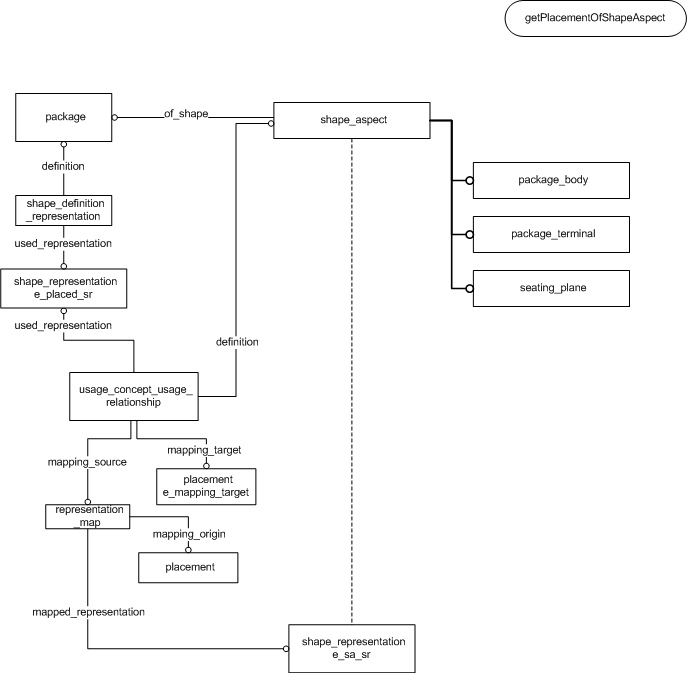

MIM Instance Diagram:

getPlacementOfShapeAspect

getUCURofShapeAspect

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EUsage_concept_usage_relationship getUCURofShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa,
                                                                                                                                 jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_sa_sr,
                                                                                                                                 jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_placed_sr)
                                                                                                                                 throws jsdai.lang.SdaiException

Returns the usage_concept_usage_relationship used to position the shape_representation (Geometric_model) of a shape_aspect (Shape_element) with respect to the shape_representation of its containing shape.

Parameters:

e_sa - the given shape_aspect

e_sa_sr - the shape_representation of the given shape_aspect

e_placed_sr - the qualifying shape_representation of the containing shape (i.e. package)

Returns:

Throws:

jsdai.lang.SdaiException

getBodyOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_body getBodyOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                         throws jsdai.lang.SdaiException

Returns the package_body (Package_body) for the given package (Package). Returns null if no package_body is found.

Parameters:

e_p - the given package

Returns:

the associated package_body

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getBodyOfPackage

getSeatingPlaneOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ESeating_plane getSeatingPlaneOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                  throws jsdai.lang.SdaiException

Returns the seating_plane (Seating_plane) for the given package (Package). Returns null if no seating_plane is found.

Parameters:

e_p - the given package

Returns:

the associated seating_plane

Throws:

jsdai.lang.SdaiException

MIM Instance Diagram:

getSeatingPlaneOfPackage

getAllTTLISTforST

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.AAssembly_component_usage getAllTTLISTforST(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EStructured_template e_st)
                                                                                                                      throws jsdai.lang.SdaiException

Returns all template placements composing the given structured_template (Structured_template). In the context of a package model, applicable to both footprint_definition (Footprint_definition) and padstack_definition (Padstack_definition). These assembly_component_usage reflect the MIM mapping of the Template_location_in_structured_template.

Parameters:

e_st - the given structured_template

Returns:

an aggregate of assembly_component_usage

Throws:

jsdai.lang.SdaiException

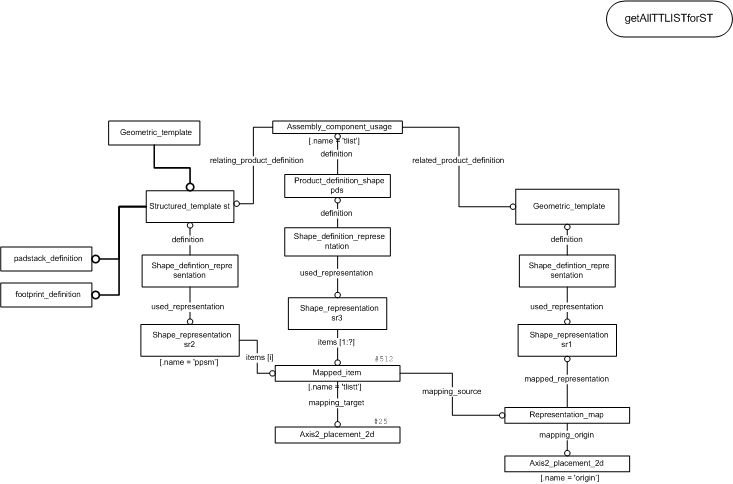

MIM Instance Diagram:

getAllTTLISTforST

getPartFeatureForTLIST

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect getPartFeatureForTLIST(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EAssembly_component_usage e_tlist)
                                                                                                               throws jsdai.lang.SdaiException

Returns a shape_aspect representing the Part_feature associated with the given assembly_component_usage corresponding to a Part_feature_based_template_location subtype of Template_location_in_structured_template. In the context of a package model, this query is most commonly used to obtain the package_terminal (Package_terminal) associated with a placement of a padstack_definition (Padstack_definition) within a footprint_definition (Footprint_definition).

Parameters:

e_tlist - the given assembly_component_usage

Returns:

a shape_aspect corresponding to the associated Part_feature

Throws:

jsdai.lang.SdaiException

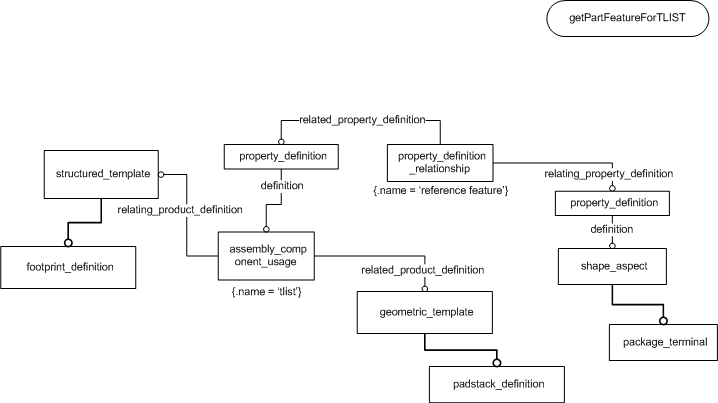

MIM Instance Diagram:

getPartFeatureForTLIST

getParametricAttributesOfPackage

java.util.Set<Param> getParametricAttributesOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                      throws jsdai.lang.SdaiException

Returns a specific set of read-only parameters (Param) associated with the given package (Package). The set of package parameters to be returned is initialized through the addPackageParam(String) method. An empty set is returned if none of the relevant parameters are found.

Parameters:

e_p - the given package

Returns:

a set of read-only package parameters

Throws:

jsdai.lang.SdaiException

See Also:

addPackageParam(String), Param

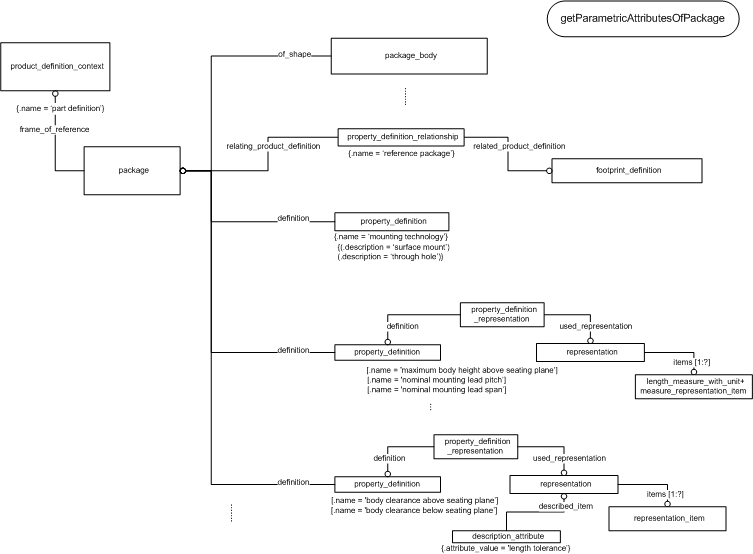

MIM Instance Diagram:

getParametricAttributesOfPackage

addPackageParam

void addPackageParam(java.lang.String name)

Adds a named package parameter to the set returned by getParametricAttributesOfPackage(EPackage). Valid package parameters map to selected attributes of the Package. The following package attributes are supported: "mounting technology" "body clearance above seating plane" "body clearance below seating plane" "maximum body height above seating plane" "maximum body height below seating plane" "maximum lead length below seating plane" "maximum seating plane installation offset" "least lead length below seating plane" "nominal mounting lead pitch" "nominal mounting lead pitch"

Parameters:

name - the name of the package parameter to be included.

See Also:

getParametricAttributesOfPackage(EPackage)

getParametricAttributesOfTerminalTemplate

java.util.Set<Param> getParametricAttributesOfTerminalTemplate(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage_terminal_template_definition e_pttd)
                                                               throws jsdai.lang.SdaiException

Returns a specific set of read-only parameters (Param) associated with the given package_terminal_template_definition (Package_terminal_template_definition). Provides a simplified interface for accessing the MIM mappings of the parametric attributes of the Package_terminal_template_definition. The set of terminal template parameters to be returned is initialized through the addTerminalParam(String) method. See addTerminalParam(String) for a list of supported attributes. An empty set is returned if none of the relevant parameters are found. The attributes of the Package_terminal_template_definition are mapped to instances of property_definition with identifying names. Values are extracted directly from the property_definition description in the case of enumeration attributes, and from the associated representation in the case of physical measurements. An empty set is returned if none of the relevant parameters are found.

Parameters:

e_pttd - the given package_terminal_template_definition

Returns:

a set of read-only terminal template parameters

Throws:

jsdai.lang.SdaiException

See Also:

addTerminalParam(String), Param

addTerminalParam

void addTerminalParam(java.lang.String paramName)

Adds a named terminal template parameter to the set returned by getParametricAttributesOfTerminalTemplate(EPackage_terminal_template_definition). Valid terminal template parameters map to selected attributes of the Package_terminal_template_definition. The following package terminal template attributes are supported: "predefined lead form" "seating plane intersection" "terminal diametrical extent"

Parameters:

paramName - the name of the terminal template parameter to be included.

getShapeAspectsOfPhysicalUnit

java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect> getShapeAspectsOfPhysicalUnit(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPhysical_unit e_p)
                                                                                                                                     throws jsdai.lang.SdaiException

Get all shape_aspect instances defined on the given physical_unit instance across all associated shape_representation instances

Parameters:

e_p - the physical_unit instance

Returns:

all shape_aspect instances defined on the physical_unit

Throws:

jsdai.lang.SdaiException

getShapeAspectsOfPhysicalShapeRepresentation

java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect> getShapeAspectsOfPhysicalShapeRepresentation(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPhysical_unit e_p,
                                                                                                                                                    jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_representation e_r)
                                                                                                                                                    throws jsdai.lang.SdaiException

Returns a listing of all shape_aspect instances defined on the given physical_unit that are used by the given associated shape_representation of the physical_unit

Parameters:

e_p - the physical_unit instance

e_r - a shape_representation of the physical_unit

Returns:

the shape_aspect instances

Throws:

jsdai.lang.SdaiException

getAllPropertyDefinitionsOf

java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProperty_definition> getAllPropertyDefinitionsOf(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect)
                                                                                                                                          throws jsdai.lang.SdaiException

Returns all property_definition instances associated with the given shape_aspect either directly or through any composite_group_shape_aspect memberships

Parameters:

aspect - the shape_aspect

Returns:

all property_definition instances defined on the given instance

Throws:

jsdai.lang.SdaiException

getMembersOfCompositeShapeAspect

java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect> getMembersOfCompositeShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_shape_aspect composite)
                                                                                                                                        throws jsdai.lang.SdaiException

Returns all shape_aspect instances that are (direct) members of the given composite_shape_aspect instance through a shape_aspect_relationship

Parameters:

composite - the composite instance

Returns:

all members of the composite

Throws:

jsdai.lang.SdaiException

getCompositeGroupsOfShapeAspect

java.util.Set<jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_group_shape_aspect> getCompositeGroupsOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect e_sa)
                                                                                                                                                       throws jsdai.lang.SdaiException

Finds all composite_group_shape_aspect instances of which the given shape_aspect is a member through a shape_aspect_relationship

Parameters:

e_sa - the shape_aspect

Returns:

all associated composite_group_shape_aspect instances that contain the given shape_aspect

Throws:

jsdai.lang.SdaiException

getThermalNetworkOfPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EThermal_network getThermalNetworkOfPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_p)
                                                                                                                      throws jsdai.lang.SdaiException

Get a thermal_network defined for the given package instance through a qualifying product_definition_relationship instance

Parameters:

e_p - the package

Returns:

a thermal_network instance of the package

Throws:

jsdai.lang.SdaiException

assignThermalNetworkToPackage

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProduct_definition_relationship assignThermalNetworkToPackage(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EPackage e_pkg,
                                                                                                                                         jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EThermal_network e_net)
                                                                                                                                         throws jsdai.lang.SdaiException

Assign the given thermal_network instance to the provided package through an appropriate product_definition_relationship

Parameters:

e_pkg - the package

e_net - the thermal_network

Returns:

the created product_definition_relationship used to associate the thermal_network with the package

Throws:

jsdai.lang.SdaiException

addShapeAspectProperty

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EProperty_definition addShapeAspectProperty(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect,
                                                                                                                      java.lang.String property,
                                                                                                                      jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ERepresentation value)
                                                                                                                      throws jsdai.lang.SdaiException

Add a named property value to a shape_aspect instance through a property_definition association

Parameters:

aspect - the shape_aspect

property - the name of the property value to be added

value - the value representation of the property

Returns:

the created property_definition linking the property to the shape_aspect

Throws:

jsdai.lang.SdaiException

addShapeAspectToComposite

jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect_relationship addShapeAspectToComposite(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect member,
                                                                                                                               jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EComposite_shape_aspect composite)
                                                                                                                               throws jsdai.lang.SdaiException

Add a shape_aspect as a member of a composite_shape_aspect through an associated shape_aspect_relationship

Parameters:

member - the shape_aspect to be added

composite - the composite_shape_aspect

Returns:

the created shape_aspect_relationship linking the member to the composite

Throws:

jsdai.lang.SdaiException

getParametersOfShapeAspect

java.util.List<Param> getParametersOfShapeAspect(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect)
                                                 throws jsdai.lang.SdaiException

Extract all properties defined on the given shape_aspect (both directly and through any composite_group_shape_aspect associations) through property_definition relationships

Parameters:

aspect - the shape_aspect instance

Returns:

the named properties defined for the shape_aspect through property_definition relationships

Throws:

jsdai.lang.SdaiException

getParametersOfShapeAspectInContext

java.util.List<Param> getParametersOfShapeAspectInContext(jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.EShape_aspect aspect,
                                                          jsdai.SAp210_electronic_assembly_interconnect_and_packaging_design_mim_lf.ERepresentation_context context)
                                                          throws jsdai.lang.SdaiException

Extract all properties defined on the given shape_aspect (both directly and through any composite_group_shape_aspect associations) through property_definition relationships where the representation_context of the value representation of the property_definition is the provided context instance

Parameters:

aspect - the shape_aspect

context - the representation_context of desired property_definition value representations

Returns:

properties of the shape_aspect with values in the given representation_context

Throws:

jsdai.lang.SdaiException
